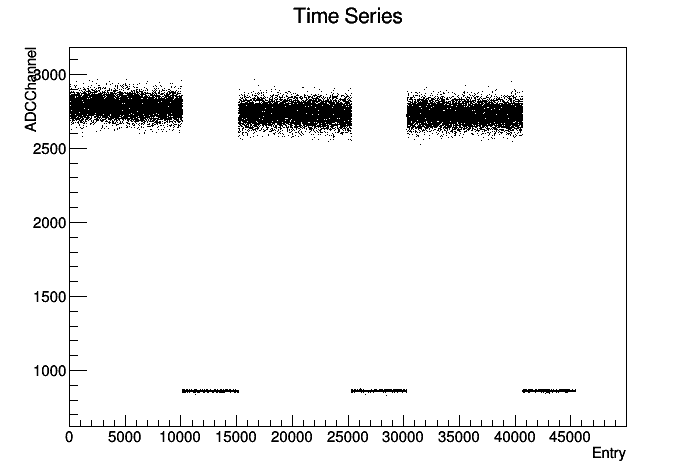

Pulse Driver stability test (HP8112A):
Pulse Width: 20ns Delay: 150ns Amplitude: -0.5V Rate: 201
The pulse driver has NOT been rebooted between measurements of ~10k events (the voltage has been dropped to zero after the first 10k events and keep it to zero voltage for the next 5k events) the intervals between measurements is ~1h. The first measurement (black) was done in the next few minutes of turning on the pulse driver, then after ~14h the second measurement was done (red), after ~1h the third measurement was done (green line).
