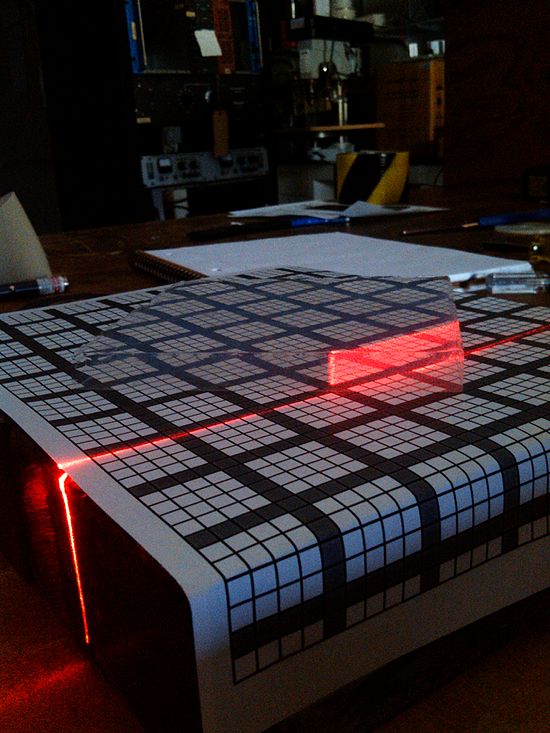

A red laser is visible as it passes through an aerogel tile during one of our measurements for the index of refraction.

About Our Work

The index of refraction is a property of a material which dictates how quickly light travels through that material. As light passes through a material with one index of refraction to a material with a different index of refraction, the light changes speed and "bends" as it changes mediums. When light travels from a material with a low index of refraction to one with a high index of refraction, the light is bent toward the normal, and vice versa. We are working to measure the index of refraction of aerogel to a very high degree of precision. This value is significant because the aerogel will be used as a particle identification system in the Kaon Aerogel Detector at JLab to distinguish between Kaons and Protons according to their momentum.

Measurement Set-up

We use a set-up with graph paper, a laser, aerogel, and measuring tools. The index of refraction can be measured using only the incident angle, the distance between the aerogel and a screen, and the amount the light is shifted on the screen after the aerogel is placed in front of the laser.

A picture of the index of refraction measurements. You can see the displacement of the laser by the aerogel

The equation for calculating gamma based on the incident angle is ɣ = ɑ - (π/2) + arcsin[n•sin((π/2)-arcsin(sin(ɑ)/n))]

We can then use this equation to calculate the index of refraction; n = (sin2(ɑ) + cos2(ɣ - ɑ))½

Finding Error

An image of the uncertainty propagation calculator we have been using.

Several measurements using image analysis on our aerogel tiles.

We have worked meticulously to reduce the error in our measurements and have significantly reduced our uncertainty. The next step is to include error propagation in our calculations which will account for the accumulative uncertainties of multiple measurements. We have done the uncertainty propagation by hand, but find it much more convenient to use a computer program to help with the tedious calculations. To make sure that this calculator is valid, we have compared answers from multiple tests where we did the error propagation by hand and on the calculator. To help further reduce our error, we have started using image analysis software. This allows us to take a picture of our aerogel sample and very accurately measure the incident angle of our laser.

Results

The results of our first five tests. This does not include uncertainty propagation. The red marked point is from data on a chipped corner of the Aerogel.

The results of our first six tests. These are from the same measurements as the graph to the left (except we have added one more result), but now include uncertainty propagation. We also excluded test number four because we could not verify the incident angle using image analysis.

We have done several tests and all of them have fairly small error and are very close to the expected value, 1.03. The average uncertainty in the left graph is 0.0005616, without uncertainty propagation. After including the uncertainty propagation, the graph on the right shows an average uncertainty of 0.0007216. Uncertainty propagation provides larger uncertainty, but more accurate and realistic results.

Prove it

We have worked through a couple of proofs for our experiments, both with our co-workers and on our own. The first proof was one for the equations for gamma and the index of refraction (using gamma in that equation). This was a mathematically straightforward proof, relying only on geometry and trigonometry, but was quite complicated. The calculations assume that the tiles are rectangular, that is, they have corners that are ninety degrees angles. None of our calculations take into account any dispersion factors that may arise from different wavelengths of light being used in the measurement.

The second proof was spearheaded by Daniel and focuses on finding the angle gamma using a different method from the first proof. This is very useful for reducing our uncertainty and giving us methods to double check our measurements. We are still unsure whether we can find if there is a constant vertex for the angle gamma that may be a function of distance, laser displacement, and the incident angle.
