Checks of KPP run 464 (and 488)

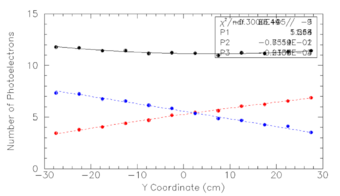

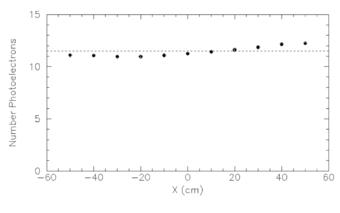

(ARTHUR) Position dependence - from variables P.aero.neg_npe_sum and P.aero.pos_npe_sum (position from P.dc.x and P.dc.y)

Run 488.

Run 488.

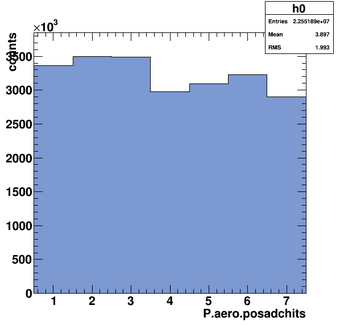

(MARCO) Number of hits identified in each PMT - from variables P.aero.negadchits and P.aero.posadchits

Run 464.

Run 464.

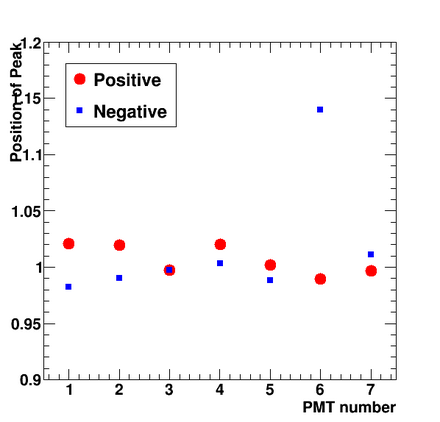

(MARCO) Gain checks - see individual fits below

Run 464.

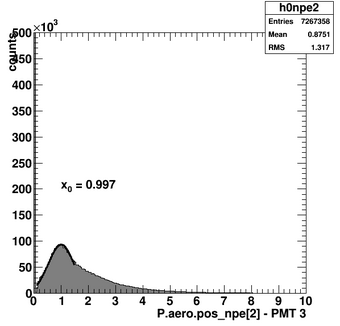

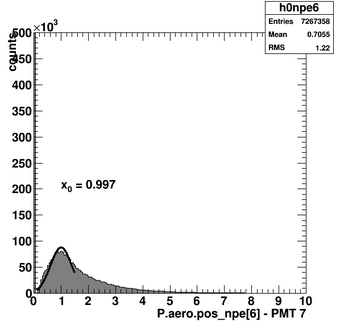

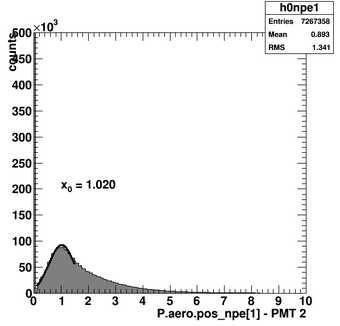

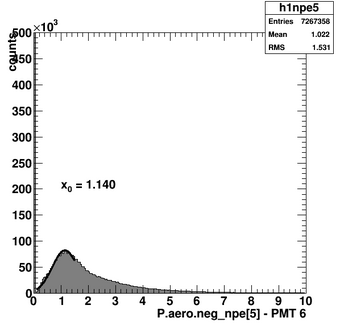

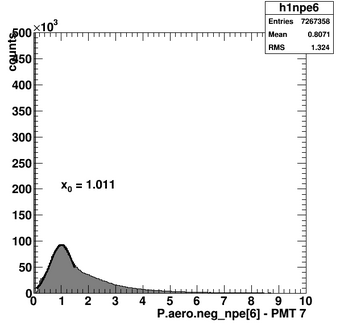

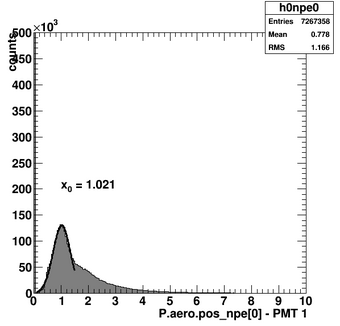

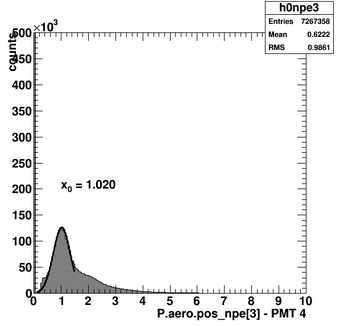

(MARCO) Simple histograms of P.aero.pos_npe and P.aero.neg_npe (no cut applied - zoomed on y-axis)

Run 464.	Run 464.
Run 464.	Run 464.
Run 464.	Run 464.
Run 464.	Run 464.
Run 464.	Run 464.
Run 464.	Run 464.
Run 464.	Run 464.
